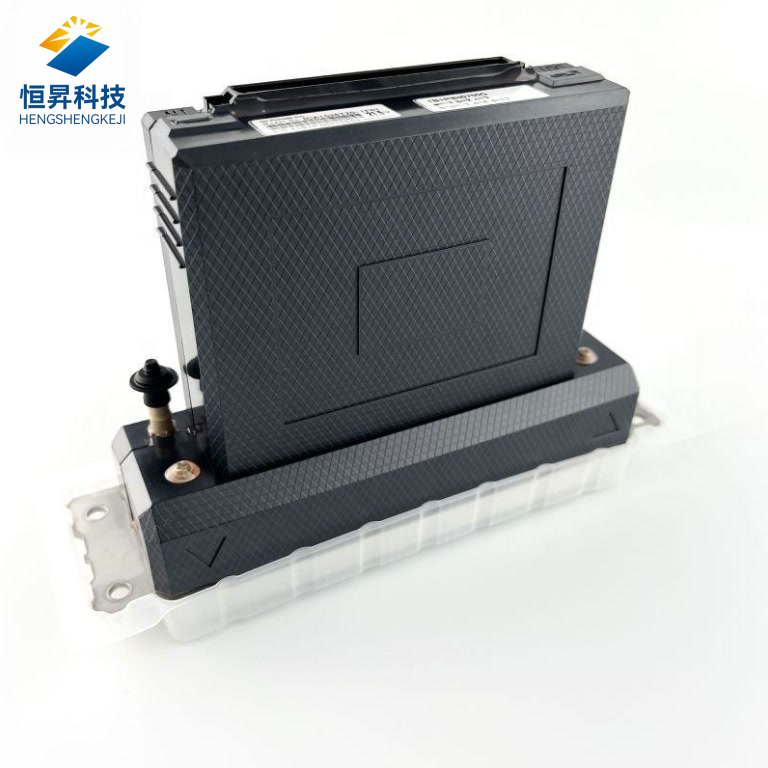

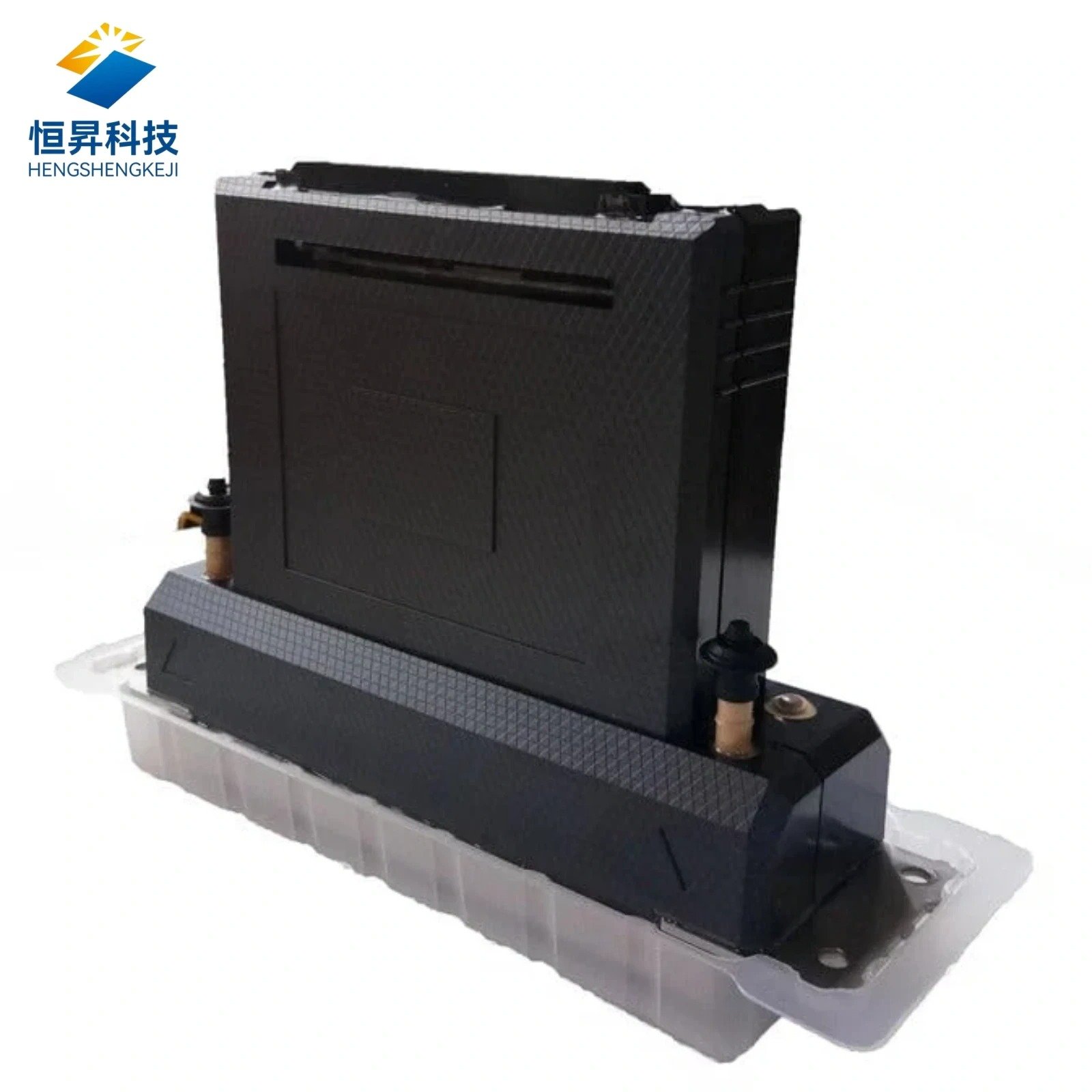

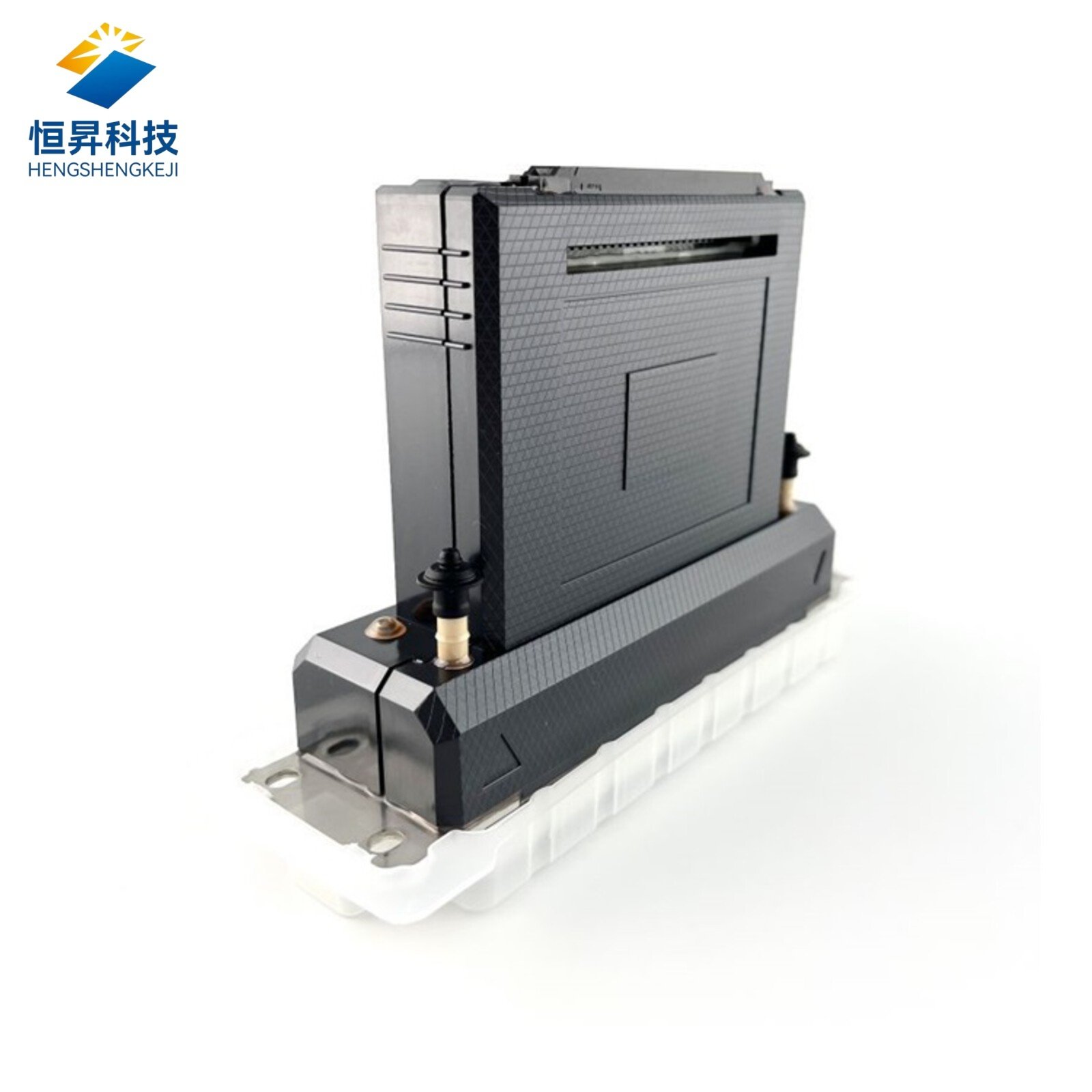

Seiko RC1536 Printhead

Description

Description

The Seiko RC1536 Printhead is a high-performance recirculation printhead designed for versatile industrial applications, including ceramics, textiles, packaging, glass, and 3D printing. It supports a wide range of viscosities, particle sizes, and drop volumes to produce effects like varnish, white, and metallic. With a 108 mm print width, high-flow ink recirculation, and compatibility with oil-, UV-, solvent-, and water-based inks, it delivers stable, high-frequency printing with minimal maintenance and reduced ink waste.

Features

Versatile Printing Capabilities – Handles a wide range of viscosities, particle sizes, and drop volumes for effects like varnish, white, and metallic.

Multi-Application Adaptability – Ideal for ceramics, corrugated cardboard, textiles, glass, 3D printing, and printed electronics.

Advanced Ink Recirculation – Continuous ink flow behind nozzles removes bubbles and impurities, prevents sedimentation, and recovers from blockages automatically.

Broad Ink Compatibility – Supports oil-, UV-, solvent-, and water-based inks.

Wide Print Width – 108 mm print width allows fewer printheads per print bar, reducing system cost.

High Productivity – Operates at up to 37 kHz with 10 grayscale levels and drop sizes from 13 pl to 225 pl.

Energy Efficient – Low-voltage operation lowers power usage and driver electronics investment.

Maintenance Reduction – Eliminates routine cleaning and priming, reducing downtime and ink waste.

Product Specifications
